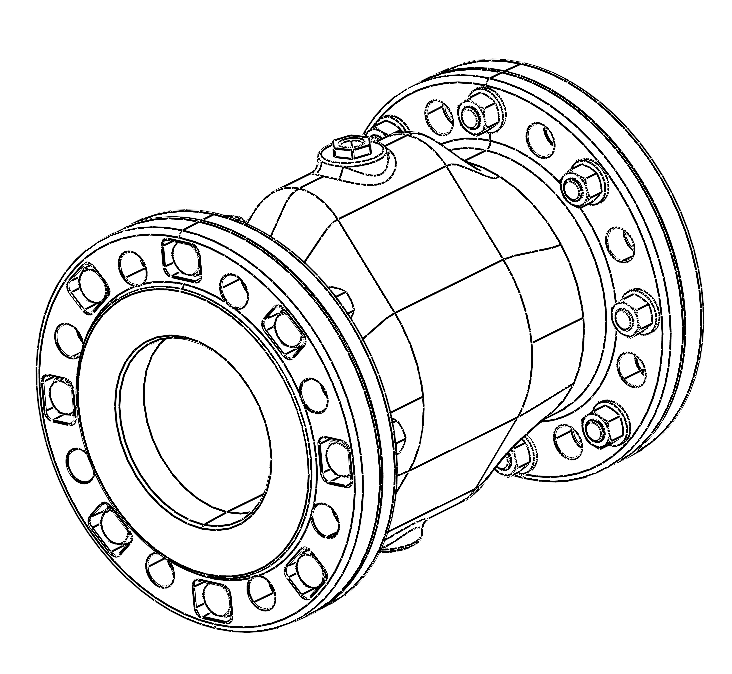

SPIV | Solids pinch valve

Application

Specially designed for use in silo trucks

Range

DN 50(2”) – 65 (21/2”) – 80 (3”) – 100 (4”)

Connection

Dual side flanged par DIN2501 or DIN28460

Design

Body made with light alloy and oversized wall thickness. Flanges out of gray cast iron.

Working conditions

Pneumatic air supply: 5-6 bar air pressure Temperatures to be specified between -10°C and 120 °C, valve tested until 24 bar

Special designs

Available on request
